Armored Vest

The Vest consists of :

  • 2 Front Panels
  • 1 Back Panel
  • 1 Left Shoulder
  • 1 Right Shoulder
  • 1 Padded Collar Ring





The 4 main panels of the vest are made with 6.5mm Heathcoat Fabrics "spacer material" (IT looks like athletic mesh on the outside, but inside is a thick space-age latticework of fibers that thicken the material). The Collar ring is made of various leather materials, padded with shaped foam. The edging on the hero and the secondary cloth vests were done with black Suede Trim.

Armor Plates - The 12 armored plates used on the hero Dredd and Anderson armor was made from .060 and .093 ABS 'pinseal' plastic. The background and stunt armor is made from urethane rubber (which molds were made from the original vacformed parts.) Both types of armor were stitched down to the vest. Nothing was riveted to the vest. Possibly you will need to hand stitch your armor to your vest, or you might be able to borrow/own a sewing machine that can punch through thick material.

Front Panels

  • (2) 1-inch Cobra Buckles at each collar bone area.
  • (4) 2-inch Cobra buckles on sides of vest. (2 per each side).
  • (4) plastic armor plates stitched to front.
  • (4) leather Belt loops sewn to bottom of vest
  • Judge badge on left chest armor plate.
  • Heavy duty square-end brass zipper, painted black.
  • 1-inch wide light weight poly-cotton webbing for collar-bone buckles.
  • 2-inch wide herring bone high-stress webbing on sides.
  • Black pig suede edge binding.

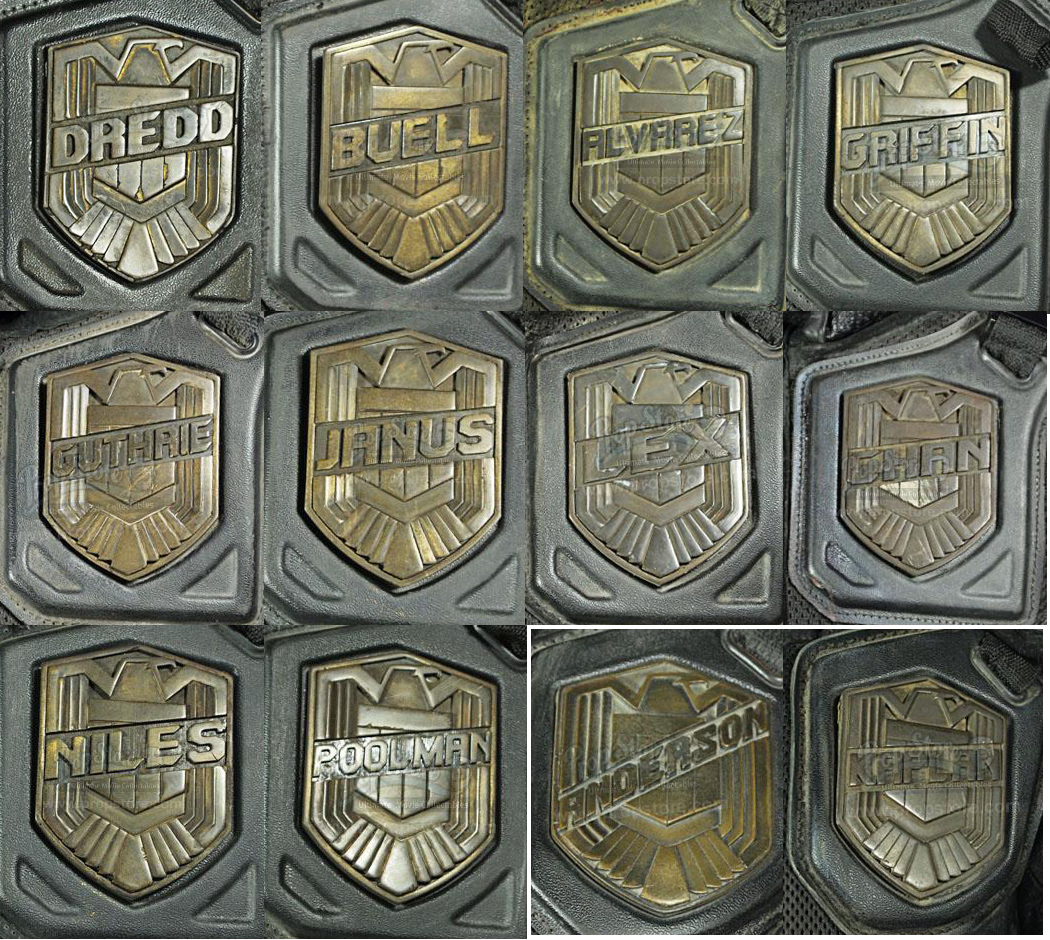

The Judge Badge

No Judge Costume is complete without a badge. The orginal badges were brass cold-cast resin with heavy distressing effect applied to the surface. The "Judge Griffin" badge that we had access to was amazingly heavy for being used on a "background costume". The Male badges are 4.25 inches tall, 3.18 inches wide, and .37 inches deep (max) (in metric: 107.45mm, 80.75mm, and 9.33 mm). The 'shield' that makes up the eagles body on the badge is 1.6 inches wide (41.0 mm).

The badge is actually made in 4 parts: A main plate, the eagle top, the letters, and the eagle bottom.

  • Be careful of what you buy.
  • Some ebay vendors are selling a metal Dredd 'Pin' Badge, an exclusive promotional item from the 2012 SDCC San Diego Comic Con. This badge is 3 inches x 2 inches, or 3/4 the size of the movie-used badges.

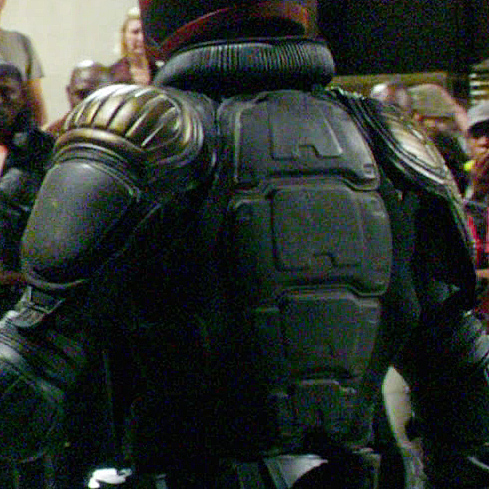

    Back Panel

    • (4) plastic Armor Plates stitched on the outside.
    • (2 or 3) 1-inch web straps connected to top of vest (attaching to collar ring)
    • (2) leather Belt loops sewn to bottom of vest
    • (2) 2-inch wide herring bone 'high-stress' webbing. (29 inches long -and- 27 inches long)
    • Black pig suede edge binding

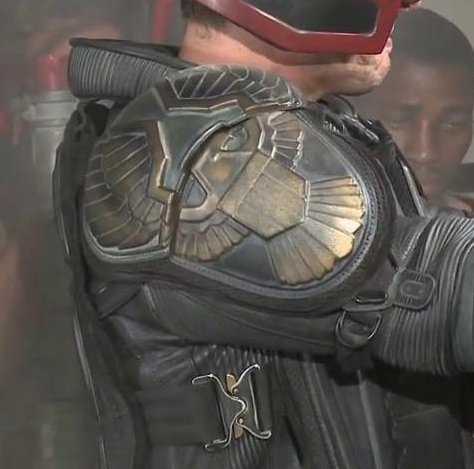

    Right Shoulder

    • (2) plastic armor plates stitched to cloth shoulder panel.
    • - Eagle wings are sculpted into the Top armor plate.
    • - Eagle Body and Head is sculpted into the Bottom armor plate.
    • Black pig suede edge binding
    • Leather/Foam Bicep-webbing Holders
    • Bronze coloring is created with a gold paste paint called "Gold Finger" (Rob Allsopp confirmed at the DraongCon Convention, Sept 1, 2013)

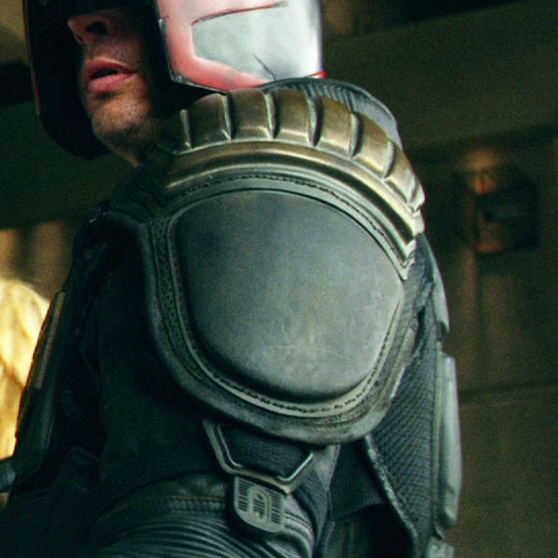

    Left Shoulder

    • (2) armor plates on shoulder panel.
    • - Top armor plate has (8) ridges molded into it. (2 small, 6 large)
    • - Bottom armor plate is a smooth oval-ish shape.
    • Black pig suede edge binding
    • Leather/Foam Bicep-webbing Holders
    • Bronze coloring is created with a gold paste paint called "Gold Finger" (Rob Allsopp confirmed at the DraongCon Convention, Sept 1, 2013)

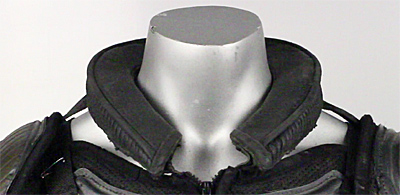

    Collar Ring

    • Perforated Leather material for the top of the collar
    • Accordian/Stretch Leather material for the outside
    • Smooth Leather material for the bottom
    • .25 inch Rolled Leather trim seperates the perforated leather and accordian leather panels
    • (5) 1 inch web straps (attaching collar ring to shoudler panels and back panel)
    • (2) 1/2 inch wide Suede Leather Straps (attach the front Collar Endpoints to the inside zipper-edge of their corresponding Front Panel on the vest.)
    • Front edges of the collar are seamed with a 1-inch leather trim

    Interior Web Strap System

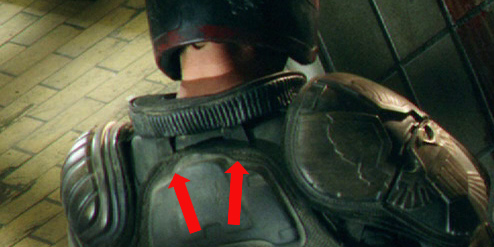

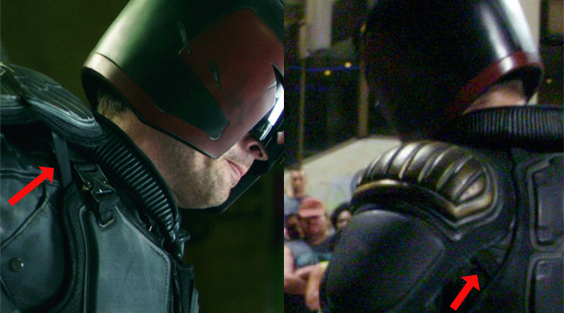

    Most of the vest is suspended from the neck collar via 1 inch web straps. (2 or 3) straps hold the back in place, (1) strap holds the top fo the right shoulder, (1) strap holds the top of the left shoudler, and (2) straps hold the front vest. The shoulders are also held in place via elastic straps that attach to the front and back edges of the shoudlers. The oppositer ends of the elastic bands attach to the correponding center points of the back panel or front panels. These elastic straps are all hidden in the inside of the vest and are rarely seen in screencaptures from the movie and are very long (approx 10-12 inches). Their length allows for added comfort and adjustment to the wearer.

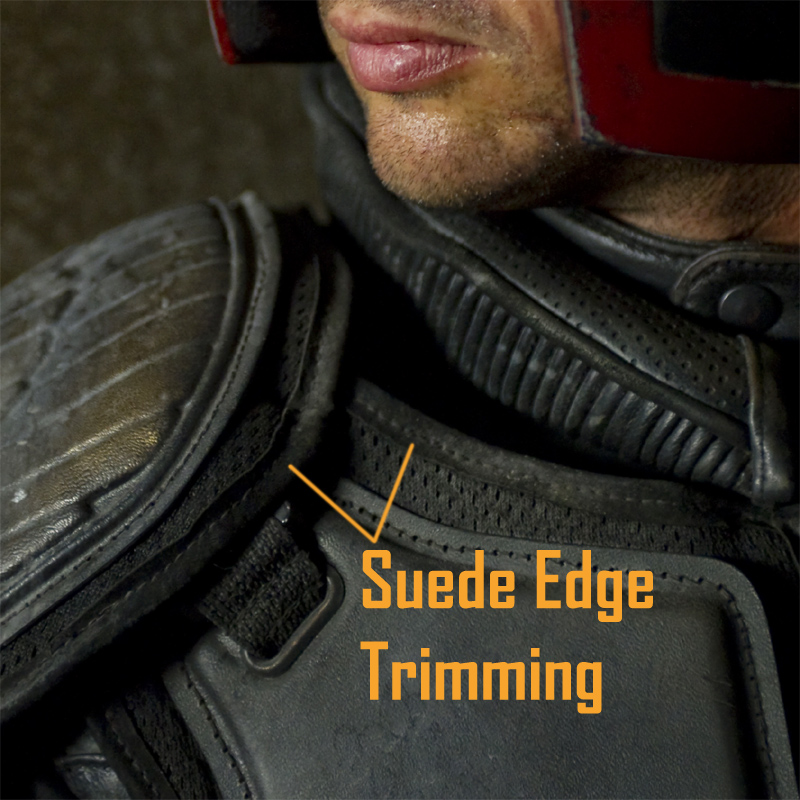

    Black Suede Leather Trimming

    Adorning all of the edges of the Spacer Fabric panels is Black Pig Suede Trimming (Rob Allsopp persoanlly confirmed the use of pig skin on the hero costumes). Even on the background vests the production company made sure the edge trimming stayed suede leather and not cloth (cloth is cheaper and a lot of production companies would have opted for that, but not the Dredd Production).

    The trim measures 1.25 inches wide with .5 inches exposed on the outside of the vest.

    If you are on a budget, and do not have the money to spend on pre-made Suede Leather Trim, look in your local thrift shops for used leather jackets that you can cut the strips off of and flip inside-out to make the trimming. Suede Leather is nothing more than just the rough, under-side of leather.

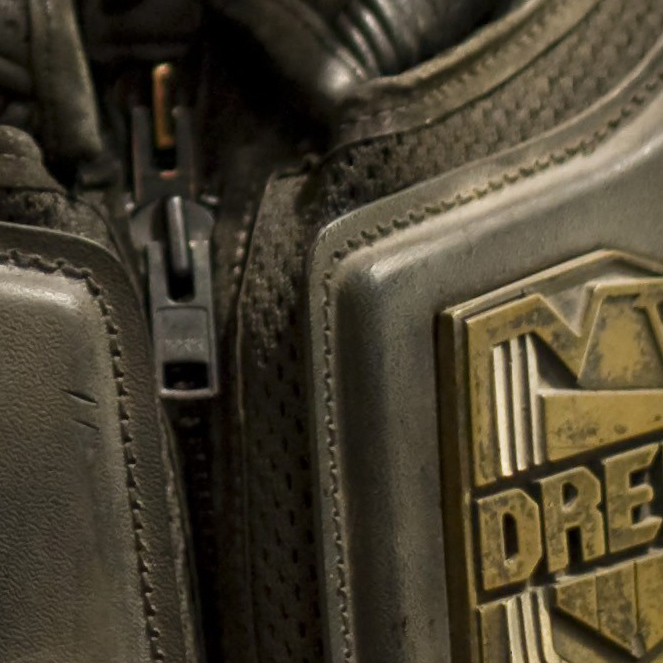

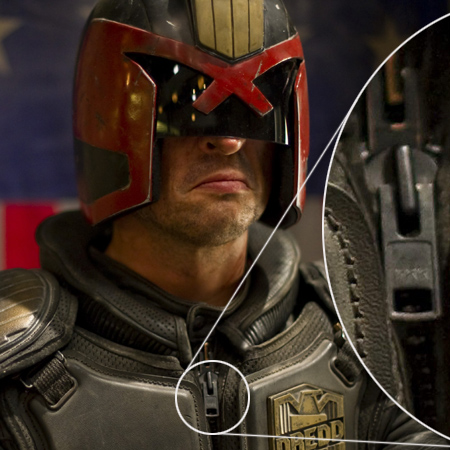

    YKK Brass Zipper

    • YKK #10 Heavy Duty Brass Zipper. (the wide zipper pull identifies itself as a #10)
    • Painted black.
    • Rectangular pull tab

    Bicep-webbing Holders

    Attached to the bottom of each shoulder armor is a triangular shaped webstrap holder that secures the shoulder armor to the wearers bicep.

    The Webstrap consists of:

    • 1-inch wide Black Cotton Webbing
    • Plastic "D-ring" cinch buckle
    • (2) Triangular-esque shaped Leather (EVA Foam on the background/stunt suits)
    • (2) Oval Grommets (set at 30-degree angles).
    • Plastic Pull-tab

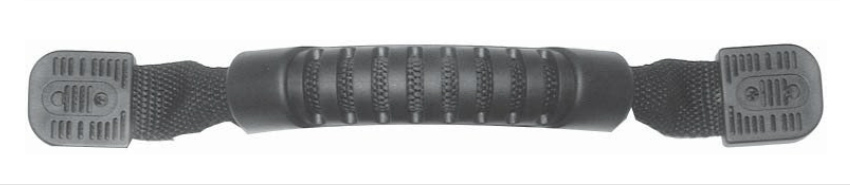

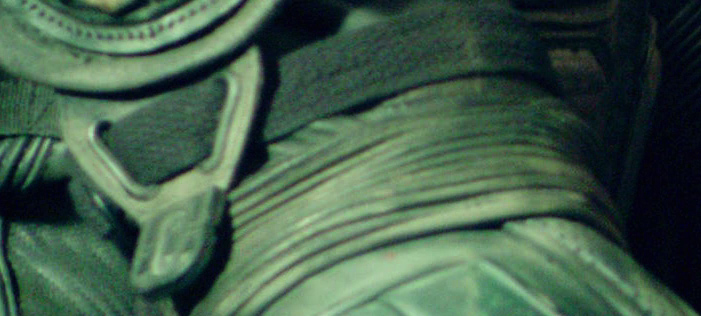

    The Plastic Pull-tab Greeblie

    During the the 2013 Dragoncon Convention the plastic pull-tab was identified by Dredd key principal costumer Rob Allsopp as an "unknown piece of luggage hardware". Fan-costumer Kurt Struss alerted the Dredd Costuming Community that a lot of parts from the production were purchased from OhioTravelBag.com. The community then quickly identified the hanging greeblie to be a generic luggage handle found in OTB's luggage repair catalog (circa 2012). Sometimes these handles are used for kayak handles. You want to find the "two hole" style greeblie.

    2-inch Cobra® Buckles

    Along the sides of the vest are (4) two-inch-wide Cobra Buckles. These are positioned with the non-adjustable female-end towards the front, and the adjustable male-end towards the back.

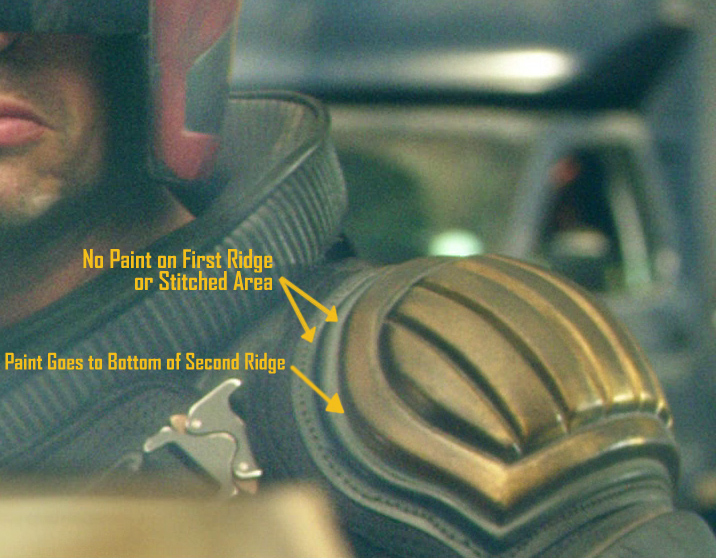

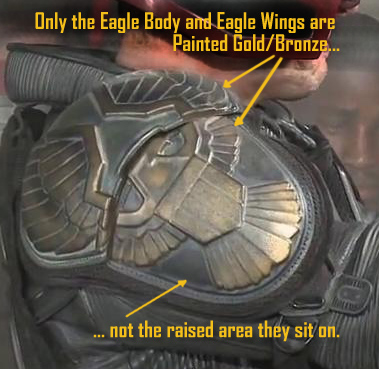

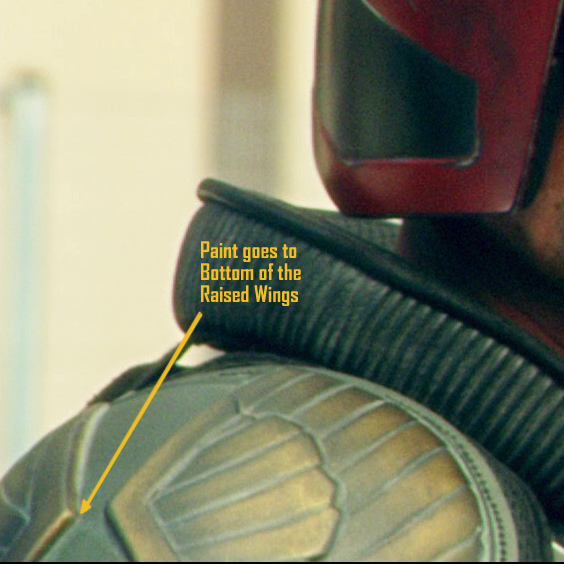

    Painting the Shoulders

    The movie vests all used UK brand GOLD FINGER "Sovereign Gold" paint. To apply Goldfinger to the armor, squirt some pigment out on to a paper towel, dab your finger into it, brush off the majority of what is on your finger, then lightly (very-very lightly) add the remaining paint to the armor. You want to diffuse the paint on the surface until it gives you the signature Dredd bronze color. I THINK a bronze or gold spray paint will work in a pinch, but you have to be very light with it. The Dredd 2012 coloring has a lot of the black plastic showing through... and that is what gives the paint it's signature look. We have not tested any spray paints yet.

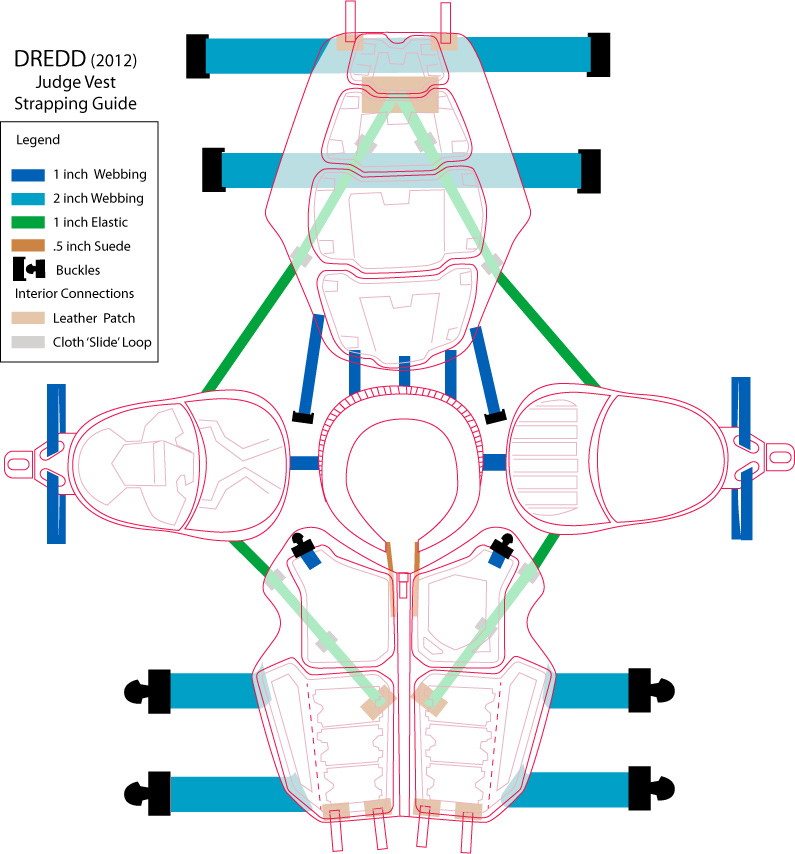

    Movie-Accurate Strap Diagram


    Movie-Accurate Armor Plate Dimensions

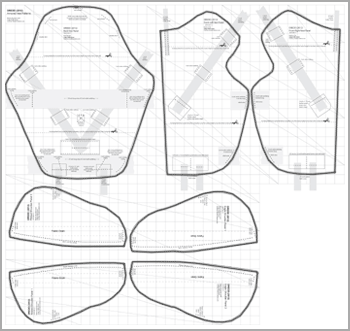

    Movie-Accurate Vest Sewing Pattern

    Female Judge Vest


    Anderson and Kaplan's Female Ballistic Vests are very similar in design to the male vests, but they have different sculpted armor panels. Because of the smaller body sizes, the armor panels are slightly smaller in size and the lower chest panels rise higher than the male panels.

    Also, on the female vests, there are no 1-inch Cobra buckles present on collar bone straps.

    We are currently working on acquiring dimensions for the female vest and hope to offer these up to the fans sometime soon.
